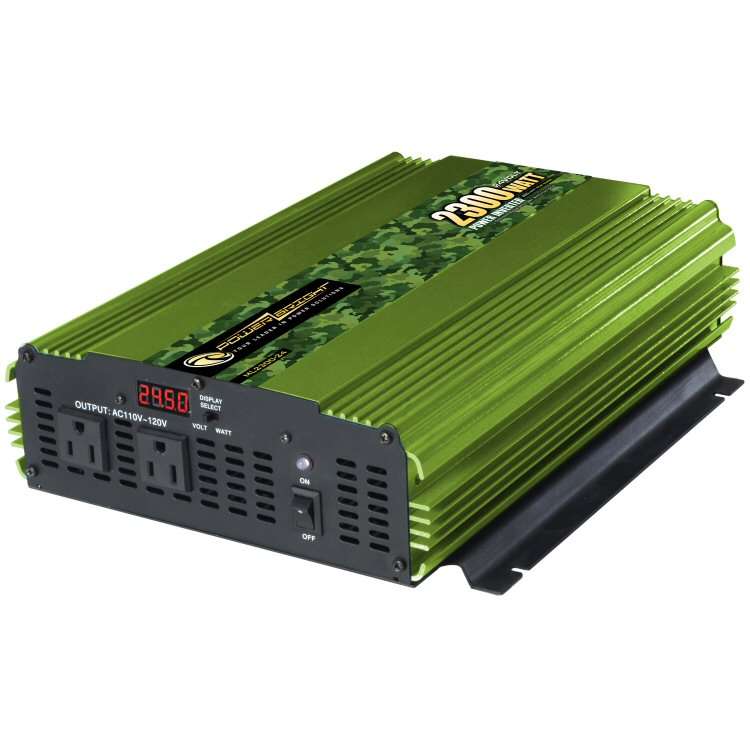

Power Bright 2300 Watt 24V Inverter ML2300-24
- Continuous power2,300 W
- Nominal voltage24 V
$289.99
Out of stock
This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.
Works with: 24 V systems
Questions? Call (727) 761-7772
SKU ML2300-24
Pairs well with
Overview
Part Number: ML2300-24
Features:
- 2300 watts continuous power
- 4600 watts peak power
- 24V DC Input
- Wireless remote control included
- Remote works up to 150 ft away!
- Anodized aluminum case provides max heat dissipation
- Digital Led Display (Input DC Voltage or Output Wattage)
- Internal, replaceable 30 amp spade type fuses
- Dual 3 Prong 110 volt AC outlet
- Built-in thermal cooling fan
- Overload Indicator
- Power ON/OFF Switch
Specifications:
- Continuous Power: 2300W
- Peak Load Power Rate: 4600W
- Input DC Voltage Range: 20-30V
- No Load Current Draw: < 0.3A
- Output Frequency Range: 60 +/- 3Hz
- Output Voltage Range: 117 +/- 10%
- Max Power Efficiency: 90%
- Low Voltage Alarm: 21 +/- 0.5V
- High Voltage Cut Off: 30.5 +/- 1V
- Short Protection: Yes
- Low Voltage Cut Off: 20.5 +/- 0.5V
- Overload Protect: Yes
- Input Voltage: DC 24V
- Dimensions (LxWxH): 13.78 x 10.24 x 3.46 in
- Weight: 12 lbs.
Highlights
- Out of stock!
- No ETA
Specifications
| Continuous power | 2,300 W |
|---|---|
| Battery voltage | 24 V |
| Output | Not listed |
| Max PV input | Not listed |
| MPPT trackers | Not listed |
| Warranty | 1 Year |
| Certifications | Not listed |
| Dimensions | Not listed |
| Weight | 12 lb |
| SKU | ML2300-24 |
|---|
Questions and answers
No questions about this product have been answered yet. Ask the first one.
Compare with similar items
| Overview | ||||
|---|---|---|---|---|
| Price | $289.99 | $553.19 | $449.99 | $307.09 |
| Availability | Out of stock | In stock | Available on backorder | In stock |
| Brand | Not listed | AIMS | Not listed | AIMS |
| Electrical | ||||
| Continuous power | 2,300 W | 5,000 W | 3,500 W | 2,500 W |
| Nominal voltage | 24 V | 24 V | 24 V | 24 V |
| Physical | ||||
| Weight | 12 lb | 17 lb | 25 lb | 13.5 lb |
| Dimensions | Not listed | 21 × 8 × 6.5 in | Not listed | 14.5 × 10.25 × 3.5 in |
| Warranty and compliance | ||||
| Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
| Certifications | Not listed | Not listed | Not listed | Not listed |
| Identifiers | ||||
| SKU | ML2300-24 | PWRINV500024W | ML3500-24 | PWRINV250024W |
