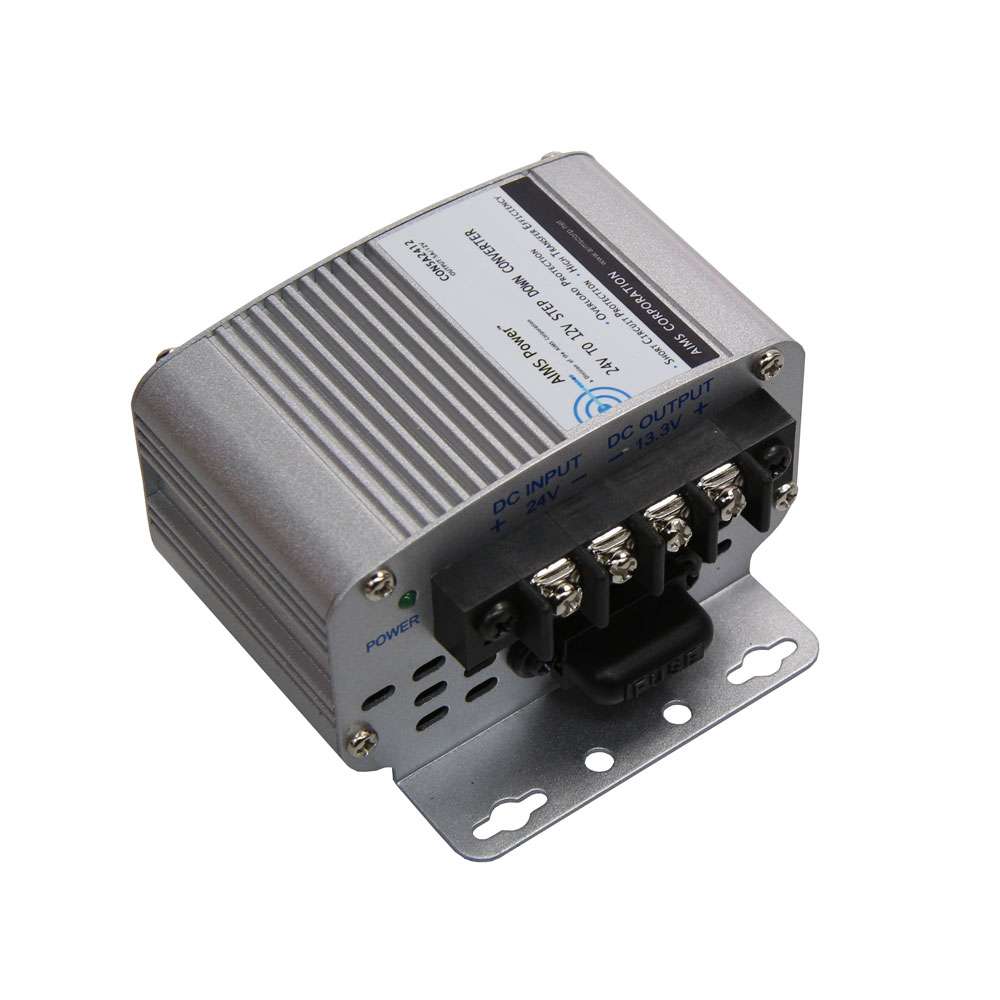

Aims 5A 24V to 12V DC-DC Converter CON5A2412
$42.80
In stock
Questions? Call (727) 761-7772
SKU CON5A2412
Overview
The CON5A2412 DC-DC converter steps down 24 VDC (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC at 5 Amps. This a non-isolated 5A DC-DC converter and is manufactured to be used in negative ground systems.
Aims CON5A2412 Features:
- 5 Amp 24 volt to 12 volt dc to dc converter
- Green LED on front panel to confirm power on
- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Aluminum case for optimal cooling
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- CE EN61000-6-3:2007+A1:2011
- CE EN61000-6-1:2007
Specifications:
- DC Input Voltage: 20-37 Vdc
- DC Output Voltage: 12.5-13.5 Vdc
- Output Current: 5 amps
- Output Current Max: 6 amps
- Non-Isolated
- Conversion Efficiency: >92%
- DC Input Low Battery Shutdown: 18 +/- 1 V
- DC Input High Battery Shutdown: >38Vdc
- DC Input Over Current Protection: 3A Fuse
- DC Input Polarity Protection: Fuse Protected
- Over Temperature Protection: 150 +/- 5 degrees F
- DC Output Short Protection: Yes
- DC Output Over Current Protection: 6 amps
- DC Output Over Voltage Protection: TVS Diode
Dimensions:
Show the full description
- Unit Weight: 0.57 lbs.
- Unit Size L x W x H: 3.62 x 3.39 x 2.2 inches
- Shipping Weight: 1 lbs.
Specifications
| Nominal voltage | Not listed |
|---|---|
| Charge current | Not listed |
| Warranty | 1 Year |
| Certifications | Not listed |
| Dimensions | Not listed |
| Weight | 1 lb |
| Brand | AIMS |
|---|---|
| SKU | CON5A2412 |
