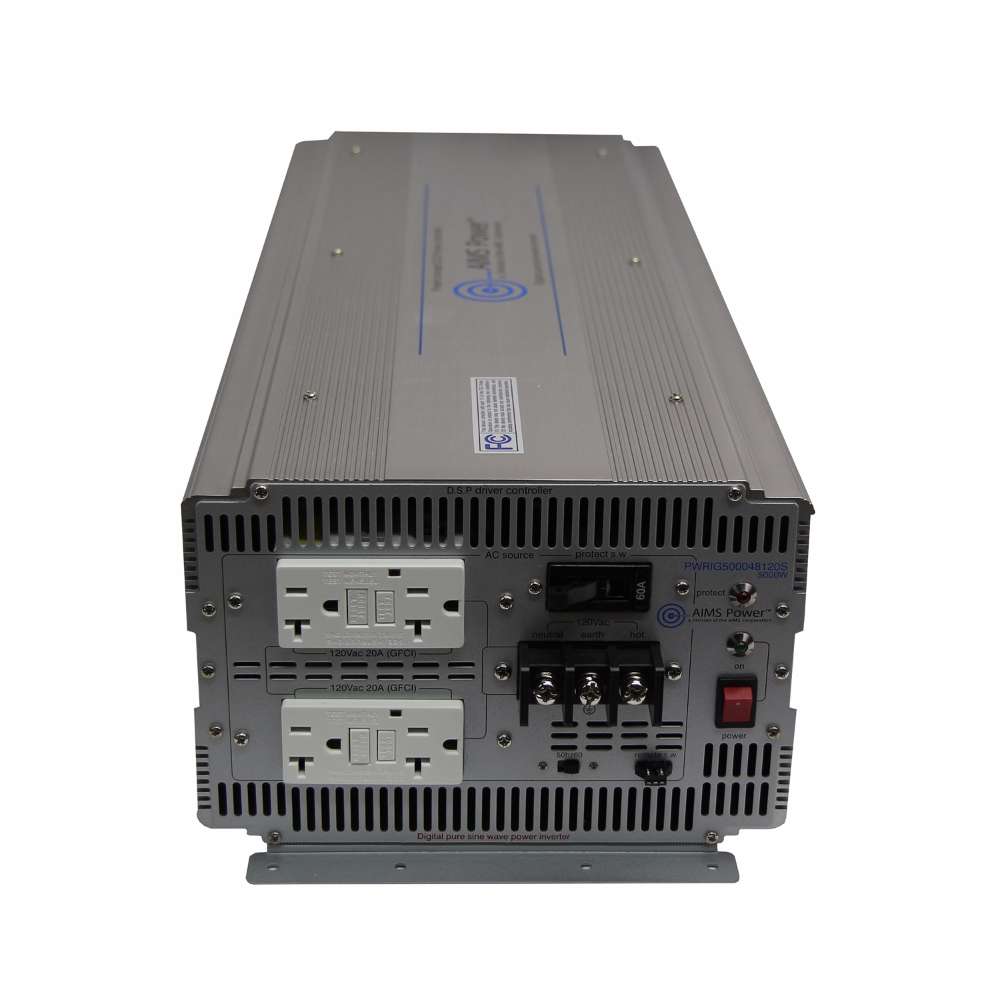

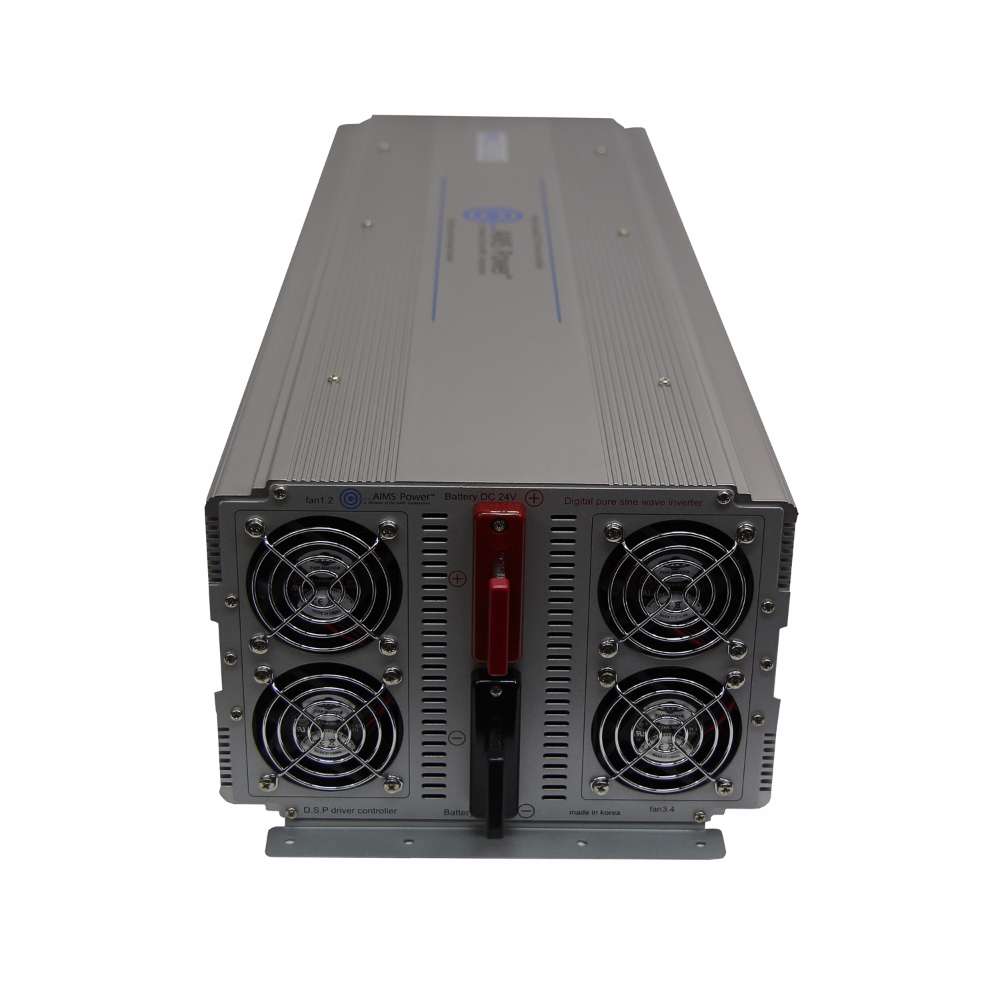

Aims 5000 Watt 24V Pure Sine Wave Inverter PWRIG500024120S
- Continuous power5,000 W
- Nominal voltage24 V
$1,282.93
In stock
Works with: 24 V systems
Questions? Call (727) 761-7772
SKU PWRIG500024120S
Pairs well with
Overview
Aims Part Number: PWRIG500024120S Many people use this Aims PWRIG500024120S inverter for their solar systems. With 5000 watts of pure sine wave power, the Aims PWRIG500024120S really is the backbone of the setup. We are experts when it comes to the Aims 5KW pure sine inverter, if you have questions, please don’t hesitate to call us today!
Specifications:
- DC Input Voltage 26.4V (21V-30V)
- Output Voltage no load 120Vac +/- 3%
- Continuous Power: 5000 Watts
- Surge Power: 10000 Watts
- Efficiency: 91%
- No Load Current (Fan On): 2.2A 24V
- No Load Current (Fan Off): 1.3A 24V
- Low Battery Shut Down: 20.0V
- Low Battery Return on Power: 22.4V
- High Battery Shut Down: 31.7V
- High battery return on Power: 30.0V
- Frequency Selection: 50/60hz
- Over Temperature Protection: -25ºC – 79ºC
- Cooling Fan on Temperature: 40ºC
- GFCI Outlets rated at 20A per block
Features:
- 5000 Watt continuous power
- 10000 Watt surge for 0.5 second
- 24 Volt DC input
- Pure sine wave
- 60hz or 50hz switch
- Highly efficient – improved output at low voltage
- 2 – GFCI Dual Outlet
- Direct connect AC Terminal Block
- Connector and cable for remote on/off switch
- Isolated ground & neutral
- Short circuit protection (GFCI and AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- Dual cooling fans thermally controlled
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
Dimensions:
Show the full description
- Unit Weight: 27.3 lbs.
- Unit Size L x W x H: 23 3/4 x 8 7/8 x 6 1/4
- Shipping Weight: 34 lbs.
- Shipping L x W x H: 29 1/8 x 13 3/4 x 11 3/4 inches
Specifications
| Continuous power | 5,000 W |
|---|---|
| Battery voltage | 24 V |
| Output | Not listed |
| Max PV input | Not listed |
| MPPT trackers | Not listed |
| Warranty | 1 Year |
| Certifications | Not listed |
| Dimensions | 29.125 × 13.75 × 11.75 in |
| Weight | 27.3 lb |
| Brand | AIMS |
|---|---|
| SKU | PWRIG500024120S |
