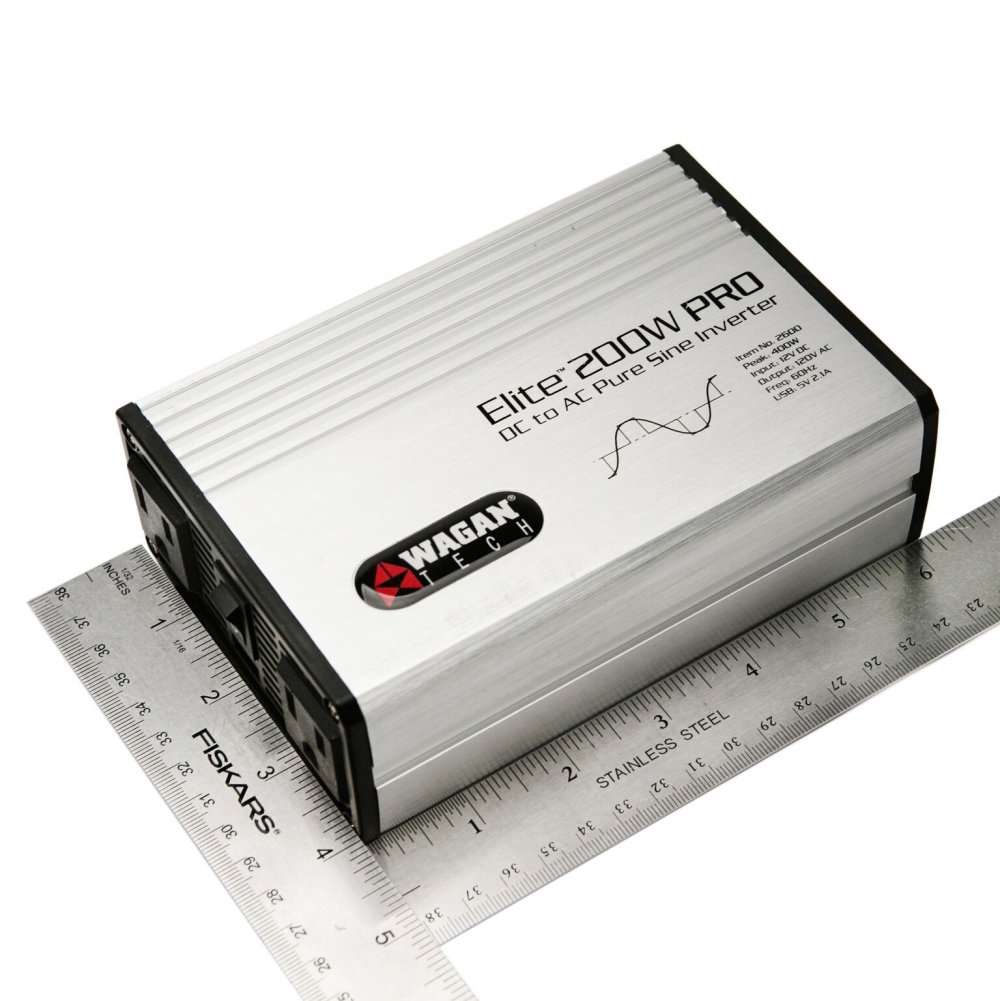

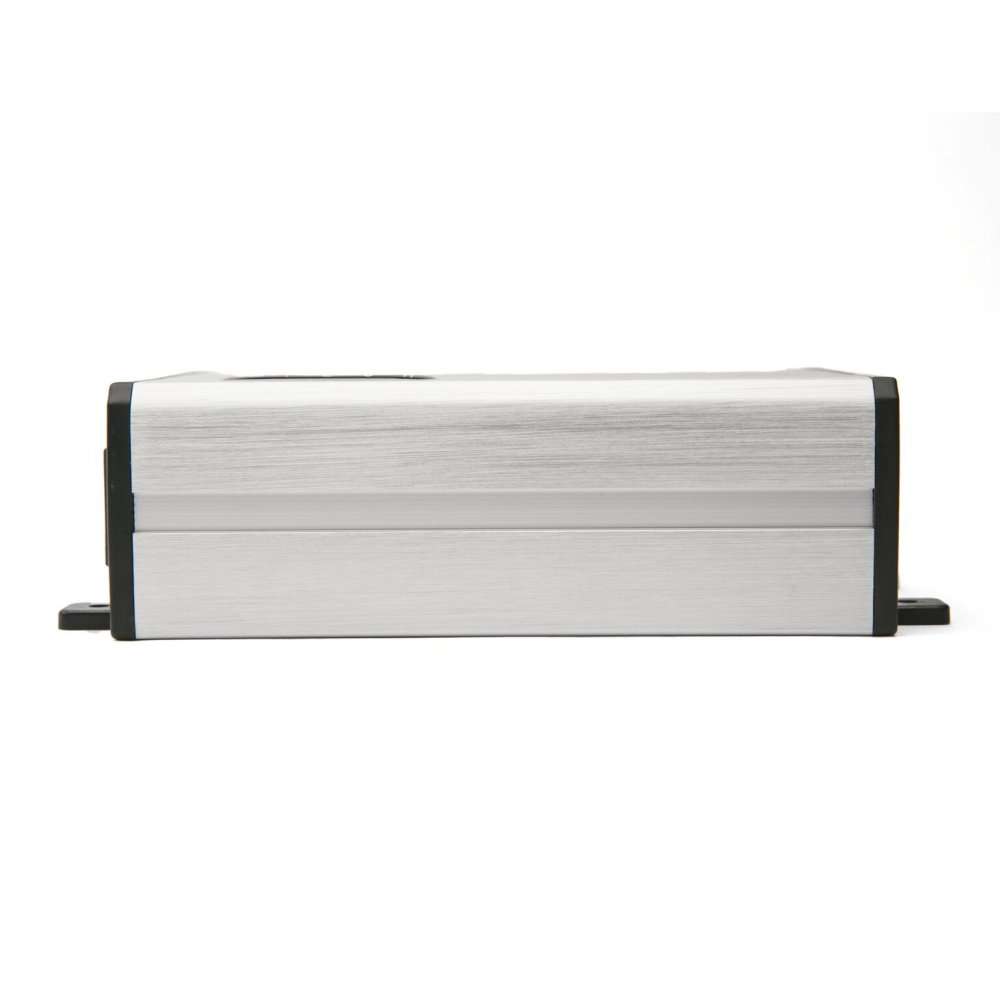

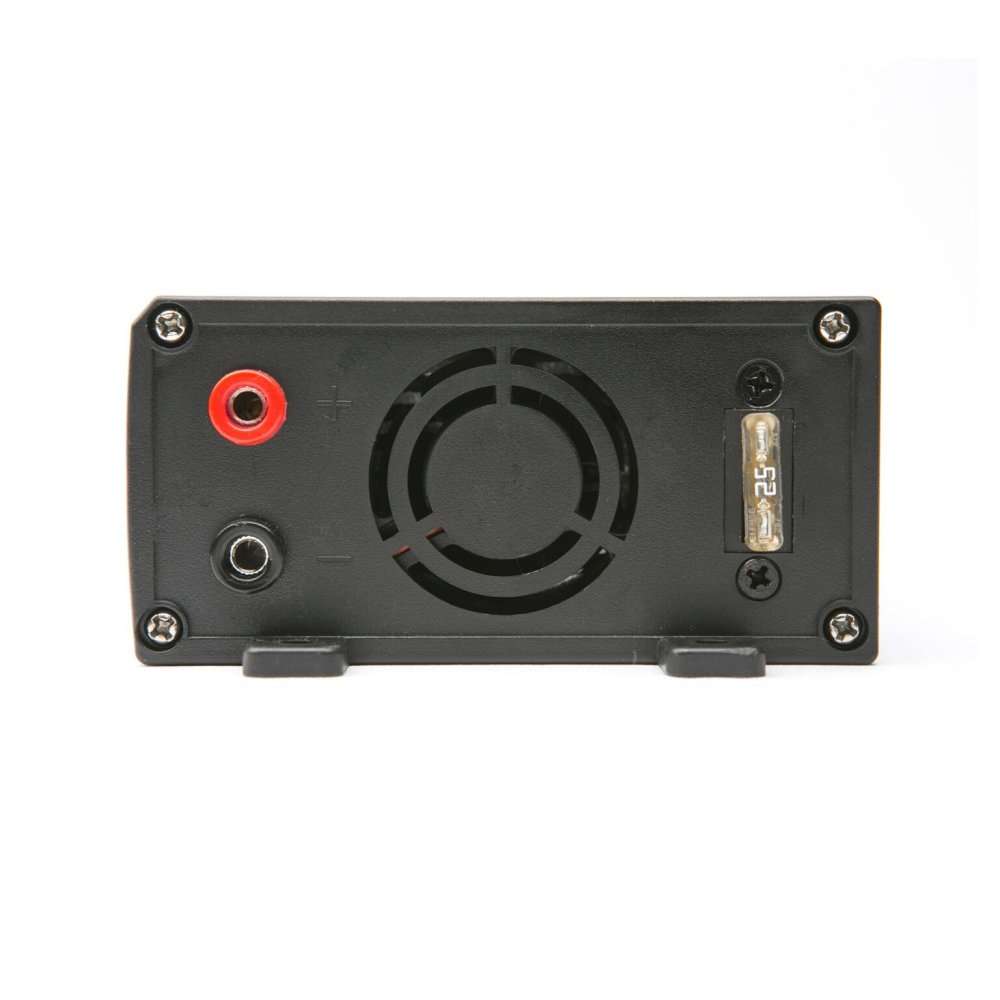

Wagan 200 Watt 12V Pure Sine Inverter Elite 2600

Continuous power200 W
Nominal voltage12 V

$89.90

Out of stock

This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.

Compare

Works with: 12 V systems

Questions? Call (727) 761-7772

SKU Elite_2600

Pairs well with

AIMS Power AGM 12V 200Ah Deep Cycle Battery Heavy Duty$384.13Details of AIMS Power AGM 12V 200Ah Deep Cycle Battery Heavy Duty
Battle Born 100Ah 12V GC2 LiFePO4 Battery$749.00Details of Battle Born 100Ah 12V GC2 LiFePO4 Battery
Battle Born 100Ah 12V LiFePO4 Lithium Deep Cycle Battery$749.00Details of Battle Born 100Ah 12V LiFePO4 Lithium Deep Cycle Battery

Nothing selected

Overview

Wagan Tech® Elite™ Pure Sine Power Inverters convert 12V DC power into 120V AC power that is identical to your home (commercial) electrical powerin true sine wave form. Compared to the traditional inverters, which output in modified sine wave, AC power in pure sine wave form will operate your electronics with cleaner, cooler, and quieter energy.

Wagan Part Number: Elite Pro 2600

Upgrade Features in the Elite PRO Models

Neutral to ground bond (for marine applications)
Tablet/e-reader compatible USB power ports
Built-in mounting points

Specifications:

TrueRated Power™: 200W
Surge power: 400W
AC output: 120V
Frequency: 60Hz
Socket type: U.S. standard grounded (2x)
Maximum efficiency: 90%
Output waveform: Pure sine wave
Total harmonic distortion: < 3%
USB power port: 2.1A
Overload protection: Automatic shutdown
Overheating protection: Thermal cooling fan with automatic shutdown
DC input: 12V
Input range: 11V to 15V
High voltage protection: 15.5 V ± 0.5 V
Short circuit and reverse polarity protection: Internal fuse
Low battery alarm: 10.5V ± 0.5V
Low battery auto shutdown: 9.5V ± 0.5V
No load current draw: < 0.5A
CE certified and RoHS compliant
Dimensions WxLxH (in.): 4.3 x 7.5 x 2.2
Weight: 1.5 lbs
Warranty: 2 years

Specifications

Key specifications
Continuous power	200 W
Battery voltage	12 V
Output	Not listed
Max PV input	Not listed
MPPT trackers	Not listed
Warranty	2 Year
Certifications	Not listed
Dimensions	Not listed
Weight	1.5 lb
