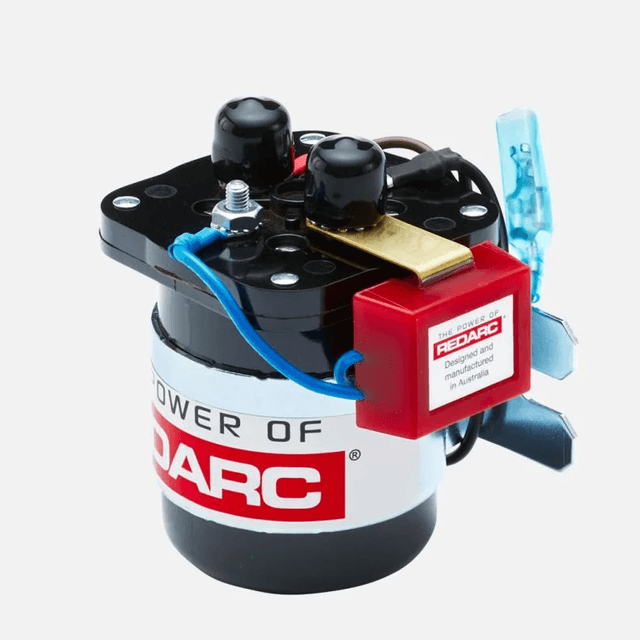

REDARC Smart Start SBI 12V 200A
- Nominal voltage12 V
$330.00
In stock
Works with: 12 V systems
Questions? Call (727) 761-7772
SKU SBI212
Overview
The REDARC Smart Start® SBI212 is a battery isolator used as a solenoid priority system to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. It provides 12-volt DC with the incorporation of 200A of continuous ratings.
POWER SAVING TECHNOLOGY
The SBI212 is designed for extremely heavy-duty operations. It’s primarily used in commercial vehicle dual battery systems. It incorporates electronic components to prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation.
FAULT DETECTION
Its low standby current draw and sophisticated fault detection and LED indication of operation warns the user of faults including over-voltage, voltage drop, and excessive current draw conditions.
BEST DUAL BATTERY ISOLATOR
Show the full description
The Smart Start SBI battery isolator is a safe way to top-up your secondary battery in your dual battery system with its power saving technology for the ultimate performance.
FEATURES
- Overmold design
- Compact size and easy installation
- Silver contacts for longer life and suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
Specifications
| Capacity | Not listed |
|---|---|
| Nominal voltage | 12 V |
| Chemistry | Not listed |
| Warranty | Not listed |
| Certifications | Not listed |
| Dimensions | Not listed |
| Weight | 1.3 lb |
| Brand | REDARC |
|---|---|
| SKU | SBI212 |
