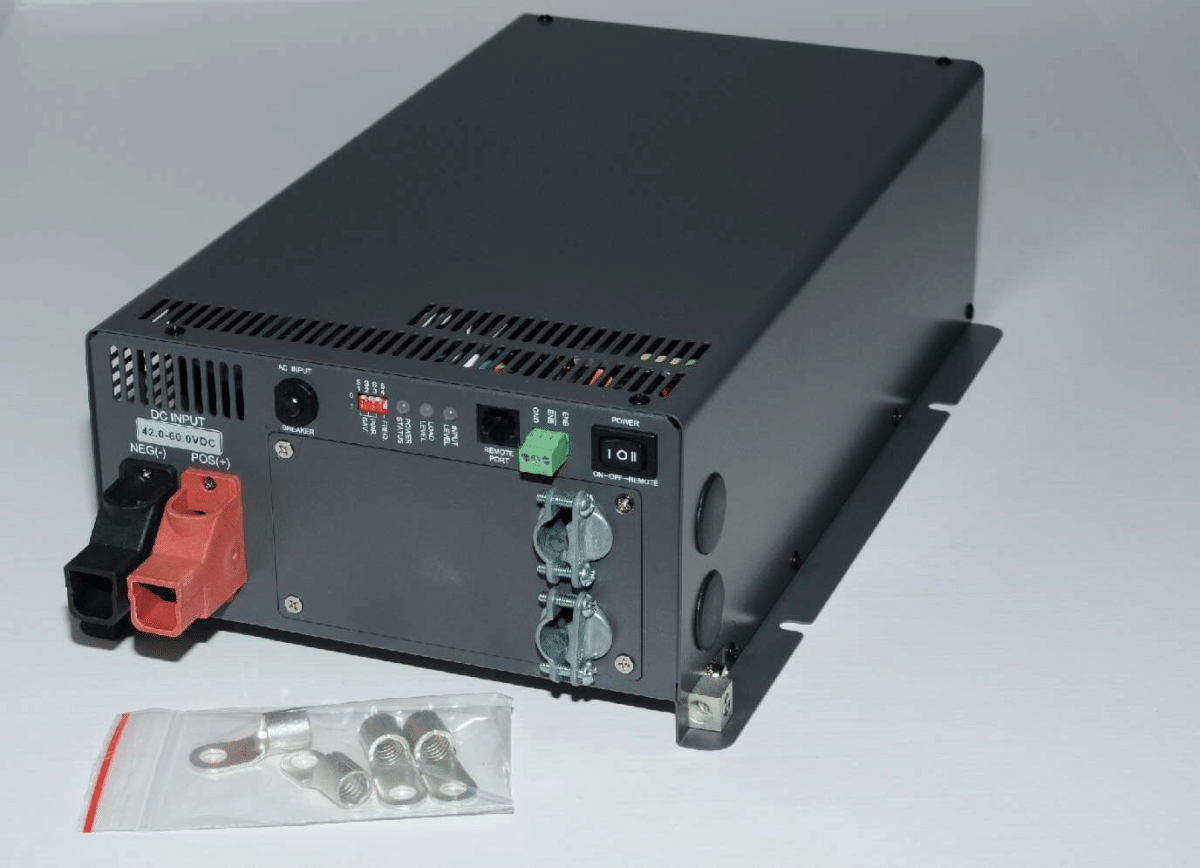

COTEK 1000 Watt 48V PSW Inverter with Transfer Switch ST1000-148

This high efficiency microprocessor controlled DC-AC inverter converts 48 Volts DC (Nominal) to 1000 watts of pure sine-wave AC power at 100/110/120 Volts, 50/60 Hz. The unit comes with in-built 16 Amp transfer switch and a 12 Amp circuit breaker. Input battery cable lugs are provided and the AC output is obtained through hardwire connection. Features include overload, short circuit, over-temperature, under & over voltage protections, low power saving mode to conserve energy. The unit is e-13/ CE / FCC approved and the safety standards of the unit conform to UL-458 specifications.

Part Number: COTEK ST1000-148

Features:

• True sine wave output (THD < 3%)
• Power ON-OFF remote control
• Input & output fully isolation
• Load control cooling fan
• Advanced microprocessor
• Output frequency 50/60 Hz switch selectable
• Low power saving mode to conserve energy
• Built-in transfer switch and AC circuit breaker
• ROF(remote override function) or ignition lockout function option
• Speed up transfer time & sync operation with utility AC source
• Input polarity reverse / under voltage / over voltage protections
• Output short circuit / overload / over temperature protections
• Tri-color indicators display input, output level & failure status
• e-13 / CE / FCC approved

Specifications:

• AC Voltage: 100 / 110 / 120VAC
• Continuous Power: 1000W
• Surge Power: 2000W
• Waveform: True sine wave (THD < 3%)
• Frequency: 50 / 60 Hz selectable by DIP switch
• AC Regulation: +/- 3%
• Standard Receptacles: HARDWIRE
• LED Indicator: Input voltage level, output load level and fault status
• No Load Current Draw: 0.38A
• Stand By Current Draw: 0.09A
• DC Voltage: 48VDC
• Voltage Range: 42.0~60VDC VDC
• Efficiency: 92%
• Fuse: 20A x 2
• Circuit Breaker: 12 Amps
• Synchronous AC Transfer: Yes
• Transfer Switch: 16 Amps
• Transfer Time: Inverter to utility AC:8~10 msec.; Utility AC to inverter:12~14 msec
• Cooling: Loading controlled cooling fan
• Remote Control: CR6 / CR8 optional
• Battery Low Voltage Alarm: 44VDC
• Battery Low Shutdown: 42VDC
• Over Load: Shut off output voltage, re-power on to recover
• Over Voltage: 61.2 VDC
• Over Temp: Shut off output voltage, auto resets
• Output Short: Shut off output voltage, re-power on to recover
• Battery Polarity Reverse: By Fuse Open
• Safety Standards: Meet UL458
• Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
• EMI Conduction & Radiation: Compliance to FCC class A
• Dimensions(L x W x H): 14.7 x 9.29 x 4.53 in
• Weight: 13.6 lbs
