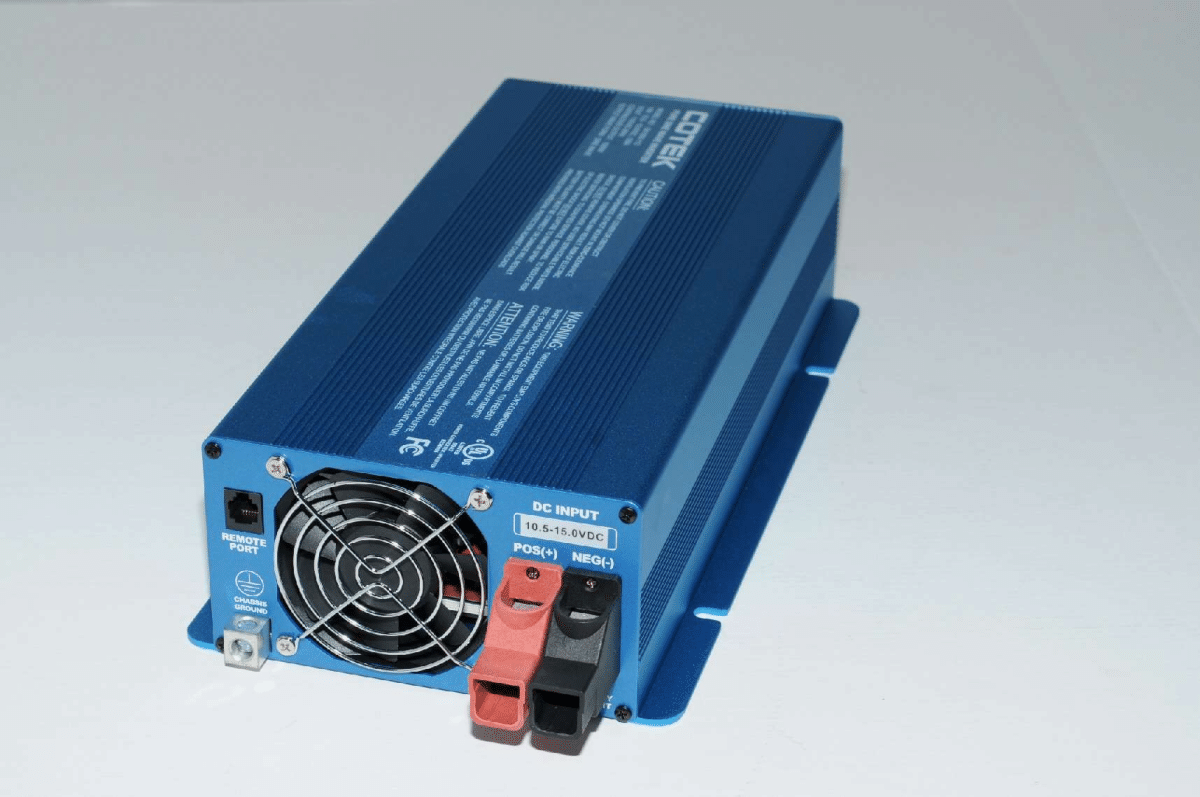

COTEK 1000 Watt 12V Pure Sine Inverter SK1000-112
- Continuous power1,000 W
- Nominal voltage12 V
$349.00
Out of stock
This item cannot be ordered online right now. Call (727) 761-7772 to ask about availability.
Works with: 12 V systems
Questions? Call (727) 761-7772
SKU SK1000-112
Pairs well with
Overview
This high efficiency microprocessor controlled DC-AC inverter converts 12 Volts DC (Nominal) to 1000 watts of pure sine-wave AC power at 100/110/120 Volts, 50/60 Hz. The unit comes with input battery cable lugs and dual NEMA 5-20R GFCI receptacles. Features include overload, short circuit, over-temperature, under & over voltage protections, low power saving mode to conserve energy. The unit is e-13/ CE / FCC approved and the safety standards of the unit conform to UL-458 specifications.
Part Number: COTEK SK1000-112
Features:
- True sine wave output (THD < 3%)
- Power ON-OFF remote control
- Input & output fully isolation
- Load control cooling fan
- Advanced microprocessor
- Output frequency 50/60 Hz switch selectable
- Low power saving mode to conserve energy
- Input polarity reverse / under voltage / over voltage protections
- Output short circuit / overload / over temperature protections
- Tri-color indicators display input, output level & failure status
- e-13 / CE / FCC approved
- 2 year warranty
Specifications:
- AC Voltage: 100 / 110 / 120VAC
- Continuous Power: 1000W
- Surge Power: 2000W
- Waveform: True sine wave (THD < 3%)
- Frequency: 50 / 60 Hz selectable by DIP switch
- AC Regulation: +/- 3%
- Standard Receptacles: US North American GFCI
- LED Indicator: Input voltage level, output load level and fault status
- No Load Current Draw: 1.43A
- Stand By Current Draw: 0.25A
- DC Voltage: 12VDC
- Voltage Range: 10.5~15.0VDC
- Efficiency: 89%
- Fuse: 40A x 4
- Cooling: Loading controlled cooling fan
- Remote Control: CR6 / CR8 optional
- Battery Low Shutdown: 10.5VDC
- Over Load: Shut off output voltage, re-power on to recover
- Over Voltage: 15.3VDC
- Over Temp: Shut off output voltage, auto resets
- Output Short: Shut off output voltage, re-power on to recover
- Battery Polarity Reverse: By Fuse Open
- Safety Standards: Meet UL458
- Isolation Resistance: I/P ~ O/P: 100M Ohms / 500VDC
- EMI Conduction & Radiation: Compliance to FCC class A
- Dimensions(L x W x H): 15.1 x 7.2 x 3.5 in
- Weight: 8.8 lbs
Specifications
| Continuous power | 1,000 W |
|---|---|
| Battery voltage | 12 V |
| Output | Not listed |
| Max PV input | Not listed |
| MPPT trackers | Not listed |
| Warranty | 2 Year |
| Certifications | Not listed |
| Dimensions | Not listed |
| Weight | 8.8 lb |
| Brand | COTEK |
|---|---|
| SKU | SK1000-112 |
