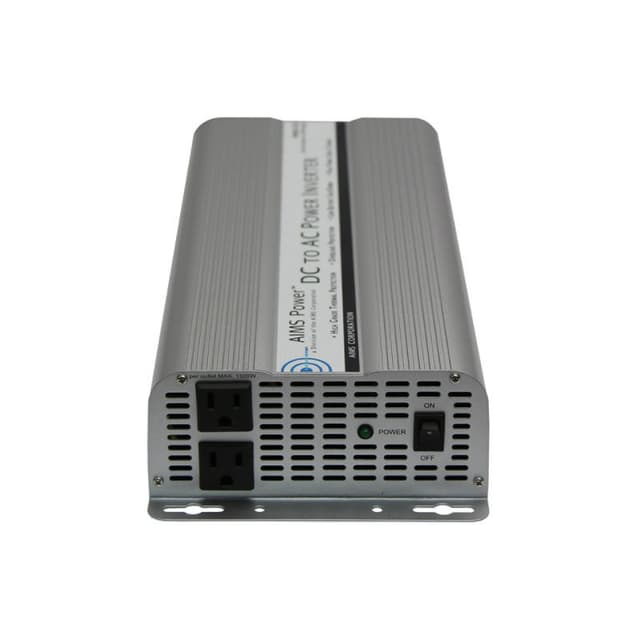

Aims 2500 Watt 12V “No Frills” Inverter PWRB2500
- Continuous power2,500 W
- Nominal voltage12 V
$245.03
In stock
Works with: 12 V systems
Questions? Call (727) 761-7772
SKU PWRB2500
Overview
Part Number: PWRB2500
New Design!
The Aims PWRB2500 2500 watt “No Frills” inverter has all the same great power and specs as the immensely popular Aims 2500 watt inverter, except that the Aims PWRB2500 does not include the following:
- No volt meter
- No amp meter
- No thermal fan (fan continuously runs)
- No remote switch jack
- No cables
Features:
- 2500 Watts max continuous power
- 20.8 Amps continuous power
- Modified sine wave
- 2 AC receptacles: Type 2 or 3 prong
- On/Off Switch
- Over Temperature protection
- Over Load protection
- Dual cooling fan
- Internal fuse protection
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 year warranty parts and labor
Show the full description
Specifications:
- Continuous output power: 2500 Watts
- Surge power capability (peak power): 5,000 Watts
- DC input / operating voltage: 10 to 15 Volts
- Output voltage: 120 Volts AC +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 10.5 +/-0.5 Volts
- Battery low voltage shutdown: 10.0+/-0.5 Volts
- No load current: < 0.6 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: 5 degrees Fahrenheit
- Full load maximum operating temperature: 131 +/-5 degrees Fahrenheit (automatic shutdown)
- AC Output Socket Type: dual Type 2-3 prong
- High input voltage protection: 15V
- Low input voltage shutdown: 10V
- Internal fuse protection
- Product size (L x W x H): 18.75″ x 9.5″ x 3.50″
- Product weight: 13.5 pounds
Specifications
| Continuous power | 2,500 W |
|---|---|
| Battery voltage | 12 V |
| Output | Not listed |
| Max PV input | Not listed |
| MPPT trackers | Not listed |
| Warranty | 1 Year |
| Certifications | Not listed |
| Dimensions | 18.75 × 9.5 × 3.5 in |
| Weight | 13.5 lb |
| Brand | AIMS |
|---|---|
| SKU | PWRB2500 |
